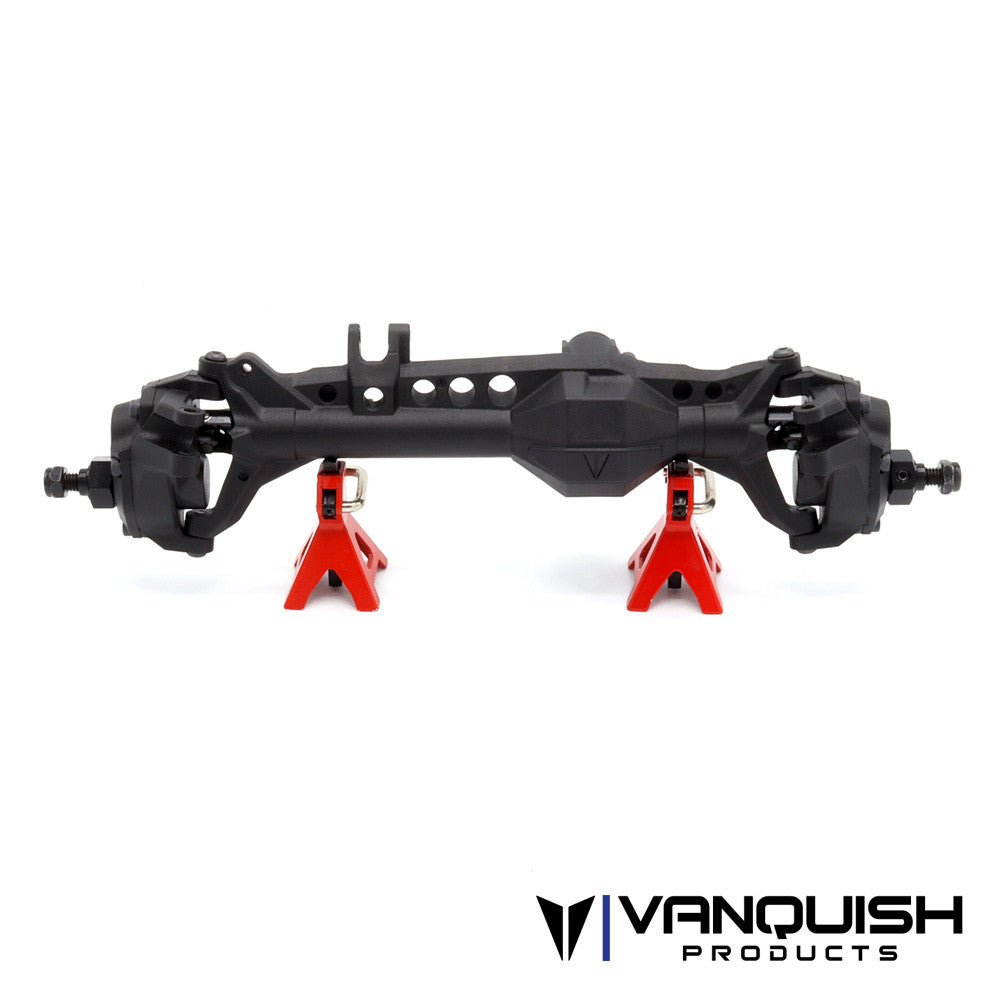

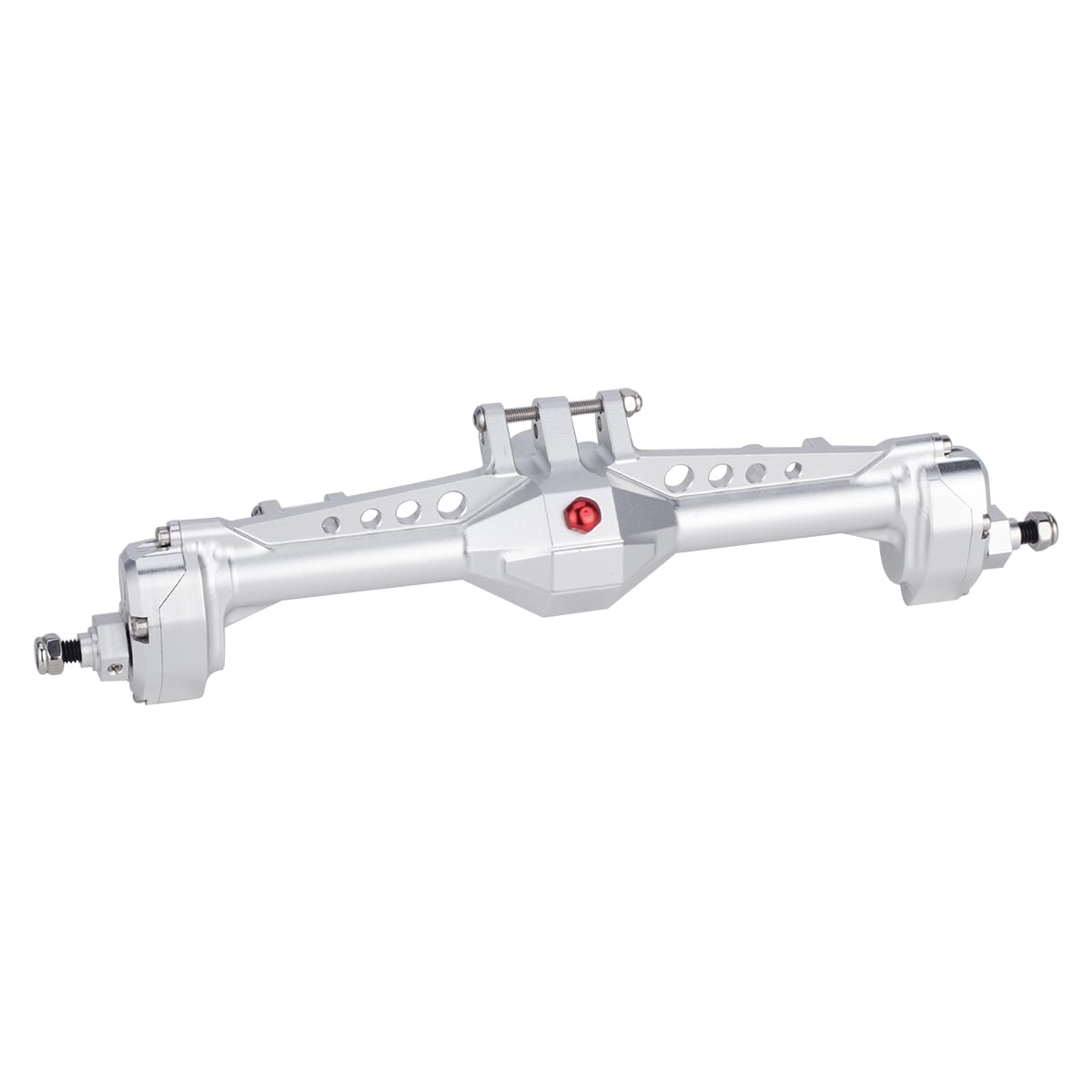

For Vanquish VS4-10 For Phoenix F10 For LCG 1/10 Machined Whether you’re a crawling purist or simply like the appearance of straight axles over portals, this kit should hit the sweet spot in more ways than one. The molded F10 Portal axles feature an ultra rigid design with an integrated truss that ties both ends of the axle together, as well as brass inner reinforcement tubes to add more strength and provide some weight down low to the vehicle. Plus, if you don't want to invest in additional servos for the dig or overdrive, both systems feature a mechanical lockout system so you aren't required to run these features unless you want to! The VS4-10 features Incision 80mm S8E shocks with larger 8mm bore aluminum threaded bodies, dual X-ring seals, locking preload collars, keyed spring cups, polished steel shock shafts, and machined pistons. The VS4-10 chassis is developed to work with the VFD Twin transmission to keep the overdrive and dig servo low on the platform. Machined hardened steel gantry gears (28T/20T), high pinion hypoid machined axle gears (30T/8T), stainless steel construction drive shafts. Molded shock towers capture the top of the 80mm Incision S8E Shocks in double shear for maximum support. C3 Ultra 4 titaninum chassis for Vanquish VS4-10 Fordyce, Phoenix, VRD & Axial SCX10ii, King of the Hammer 2024 Anniversary Edition ● Durability: Made with high-quality materials, our axles are durable and built to last, perfect for the toughest of terrains. See needed to complete list below for a list of items required to complete the model. ● Improved Performance: The machined aluminum front and rear portal axles of our RC crawler provide improved performance over traditional axles. ● Perfect Fit: Designed specifically for the Vanquish VS4-10 Phoenix F10 LCG Chassis 1/10 RC car wheelbase SCX10 III AXI03006 AXI03007, our axles provide a perfect fit for your RC vehicle. The Vanquish VS4-10 Phoenix Portal Rock Crawler Kit is the first platform to feature the Vanquish Products VFD Twin transmission (patent pending) and F10 Portal Axles. This combination provides performance advantages never before offered in a scale kit of its kind The front 3-link with panhard suspension provides scale looks by keeping the servo out of sight, while still providing room for full suspension travel. Aluminum Front And Rear Portal Axle Complete Set For 1/8 1/10 RC Crawler Car Vanquish Phoenix F10 VS4-10 LCG Chassis DIY Upgrade Parts. The Portal axle Complete includes front and rear axle, Steering rods, adapters, etc., which can be directly upgraded ) F10 Portal Axles Molded Axle housings Machined Chromoly Portal Gears Universal Style Axle Shafts 49 Degrees of Steering High Caster reinforced C-Hub High-Pinion Hypoid Machined Axle Gears (30/8) 6-Bolt Ring Gear and Spool 1.4:1 Portal Gear Ratio 6mm Output shafts with M5 wheel nut One-Piece Molded Bearing Retainers Adjustable Lower Shock Mounting Position Chromoly universal shafts Brass tube inserts Scale removable third member Machined aluminum red anodized rear fill cap with molded install tool Chassis Heavy Duty High Clearance Steel C-Channel Frame Rails Molded Front Inner Fenders with integrated LED mounts Phoenix Molded Rock sliders Phoenix High Clearance Bumpers Integrated battery tray and electronic mounting positions VFD Twin Overdrive and Dig servo mounts Stainless Steel links Molded inner fenders with front body hinge and scale radiator mount Suspension Stainless Steel Links Stainless Steel Pivot Balls S8E Scale 80mm Shocks The Incision S8E Scale Shocks feature a larger 8mm bore for increased dampening & longer seal life Dual molded X-Ring lower shock cartridge provides more sealing surfaces than standard o-rings Threaded shock bodies allow a wide spring preload range Scale shock cap with steel pivot ball and bleeder screw Offset lower shock pivot balls allow for greater flexibility for tuning shock angles Polished Shock shafts Phoenix Body VRD1 Rear Cage 3-Piece Body Design Removable Bed Sides Headlight and Tail Light buckets Molded Grill Hinged Design Hidden body clips with quick release front pivot pin Full interior Molded details parts (Wipers, Gear shifter, Steering wheel) Wheels and Tires 1.9 Falken Wildpeak MT Red Compound 1.9 Incision KMC KM233 Hex Beadlock Wheels Specifications: Overall Width: 250mm (9.84) Overall height: 250mm (9.84) Wheelbase: 313mm (12.3) Overall Front Ratio (Standard 6.5% OD): 53.7:1 Overall Front Ratio (High 46% OD): 35.8:1 Over Rear Ratio: 57.2:1 Average RTR weight: 6.5lbs (2.9kg) (can vary with electronics) Front axle width pin to pin: 190mm (7.5) Rear axle width pin to pin: 188mm (7.35) Needed to Complete: ESC 540 Motor Steering Servo (Vanquish 20mm servo horn recommended) Battery Transmitter and Receiver Polycarbonate Paint for Body Tools for Assembly Additional Electronics for VFD Twin Functionality: (2) Standard size servos for Dig and Selectable Overdrive (Standard or Low Profile) (2) 24mm servo horns 4 Channel Transmitter and Receiver Up to 45 Degrees of Steering,High Caster reinforced C-Hub One-Piece Molded Bearing Retainers Adjustable Lower Shock Mounting Position (S8E Offset Pivot Ball) Specification: Material: Aluminumalloy(Axle housing,Steeringtierod,Adapters)+Stainless steels(Driveshafts)+Hard steel(Gear) Color: Black/Silver Size: As Shown Weight:320g(Front Axle),237g(Rear Axle) 5mm Output shafts 12mm Standard Hex Hex thick:5.6mm Steering angle: approximately 45 ° Bevel Gear Set: 30T/8T Portal Gear Set: 28T/20T Total Gear Ratio=7.19:1 Fit For 1/10 RC Crawler Vanquish VS4-10 Phoenix F10 On the fly overdrive shifting from 6.5% to 46% makes an immediate change to the driving characteristics and tuning options. Vanquish Products VS4-10 Chassis is made to provide you with a balance of scale looks and unhindered performance.
